BE-AIO-04
- High brightness lamp, durable, colorless, decline, good color rendering, uniform lighting.
- Good lighting effect, multi-lamp beads efficiency improve the lighting brightness by 50%.
- Intelligent light control and time control motion sensor, can automatically light up in rainy days.
- Original brand new quality battery, standard capacity, longer service life, more durable lighting.

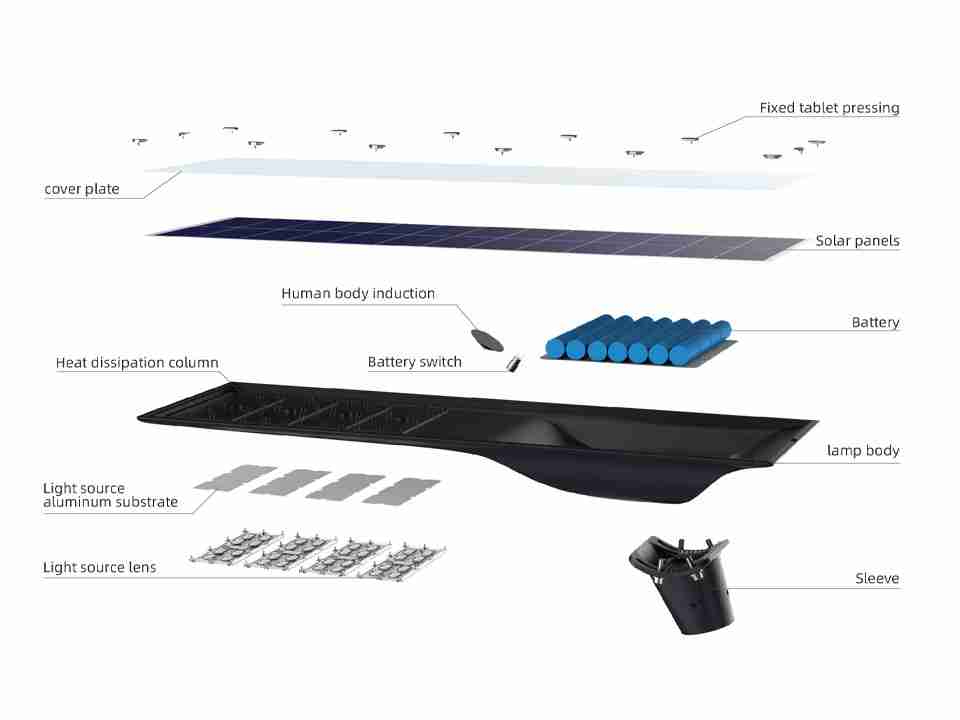

Structure Display
Bat-wing light distribution
The latest patented light source technology, High-strength imparted PC optical lens, bat v type light source to make a more uniform light distribution, importance the illuminate effect.
Solar Panel
Special lamination process is used to effectively ensure the strength of stickiness between EVA, tempered glass, and back sheet, and make solar panel's long lifespan, better performance, and high efficiency.
High efficient controller
Intelligent power regulation judges the weather and automatically plans the discharge rule reasonably, embedded in the microcomputer control system, intelligent control of charge and discharge modes, etc..make the operation of the whole system more efficient and energy-saving.
Lifepo4 battery
Deep cycle lifespan more than 1500 times, safe and reliable, no fire and no explosion, high temperature resistance, large capacity, green and no pollution, maintenance free.
Microwave sensor controller
Intelligent power adjustment, weather automatic judgment, detection of object movement; When people come, It's full lighting working, when people leave, it's intelligent lighting working, effectively prolong the lighting time.
Angle adjustable design
Sear design is adopted for an body sleeve, and the installation angle is adjustable
Intelligence Controlsystem
100% use of solar energy, no consumption of fossil fuels, no air pollution
Working mode
PS: The intelligent system will prioritize according to the setting
Intelligent power regulation
based on the battery storage capacity, effectively extending the working time of the lighting fixtures.
Even in continuous rainy weather, it can ensure the continuous operation of solar street lights.

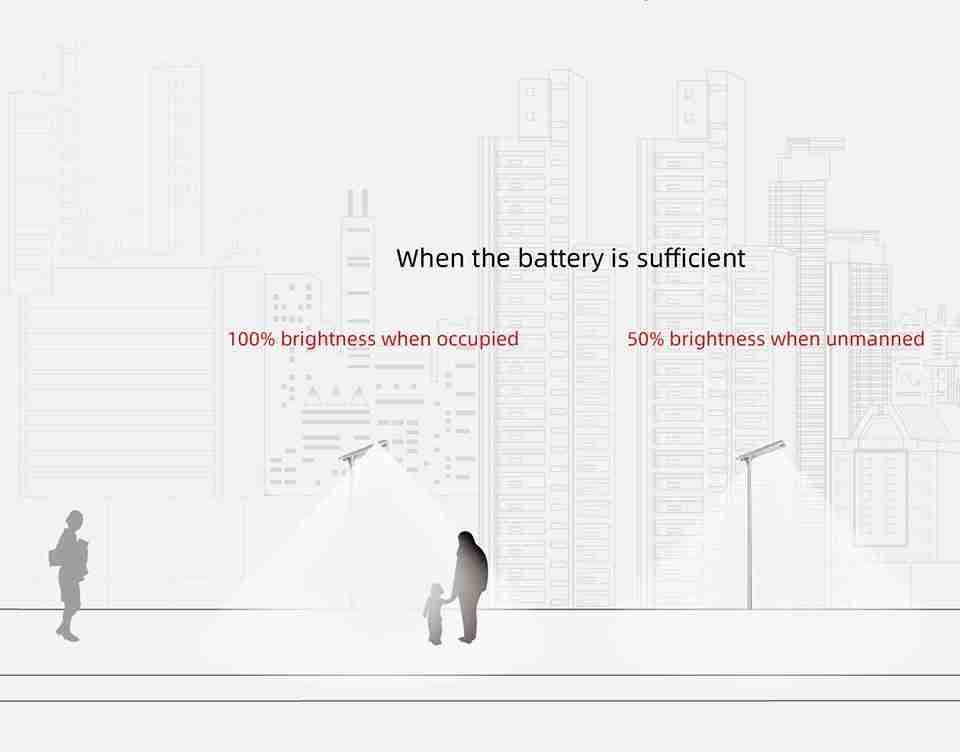

Example: When the battery is fully charged, the standard output of the lamp power (100% brightness when there are people, 50% brightness when there are no people)

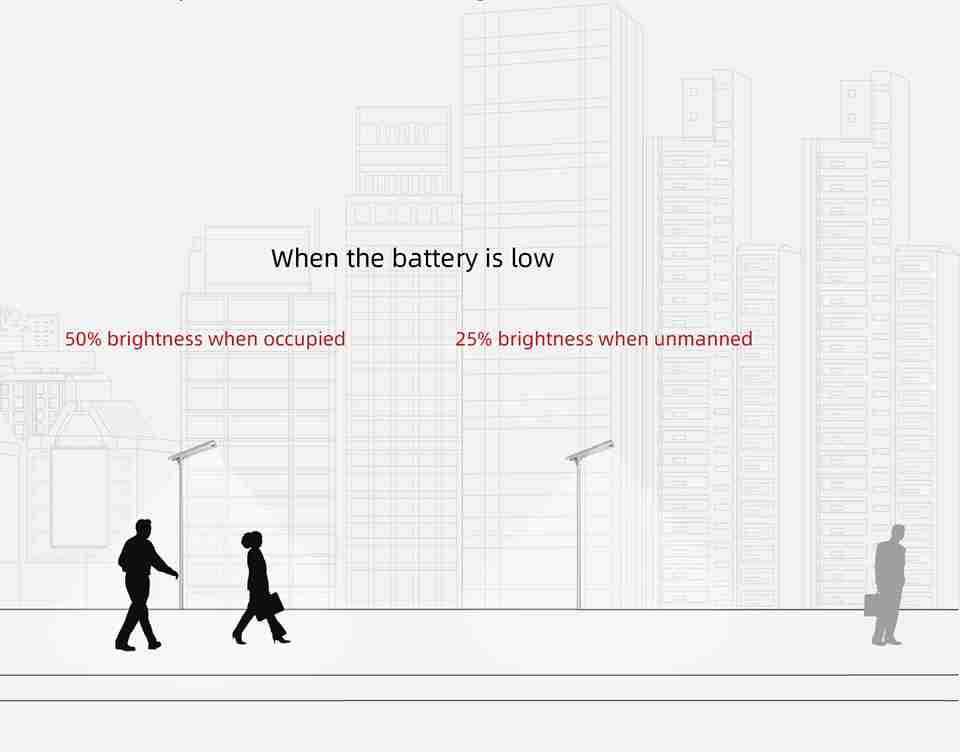

When the battery storage capacity is low, reduce the output power of the lamp (50% brightness when there is someone, 25% brightness when there is no one)
Performance
| Product’s Serial Number | BE-AIO-04-1 | BE-AIO-04-2 | BE-AIO-04-3 | BE-AIO-04-4 | |
|---|---|---|---|---|---|
| Number of Modules | 2 PCS | 3 PCS | 4 PCS | 5 PCS | |
| Solar Panel | High-Efficiency Mono-Crystalline Panel 40W | High-Efficiency Mono-Crystalline Panel 50W | High-Efficiency Mono-Crystalline Panel 60W | High-Efficiency Mono-Crystalline Panel 65W | |
| Battery Storage | LifePO4 Lithium Battery 192WH/3.2V | LifePO4 Lithium Battery 288WH/3.2V | LifePO4 Lithium Battery 384WH/12.8V | LifePO4 Lithium Battery 576WH/12.8V | |
| Cyclable Usage of Battery | Cyclable Usage of LifePO4 is 2000 Times | ||||
| The Temperature of Charge and Discharge | The Temperature of the Charging Process is 0-45℃, the Temperature of Discharging Process is -20-60℃ | ||||
| Rated Power | 20W | 30W | 40W | 50W | |
| Color Temperature | 3000K - 6500K | ||||
| Effectiveness of Illuminance | 130-180LM/W | ||||
| Color Rendering Index | □ RA≥70 □ Ra≥80 | ||||
| Operating Condition | -10℃-+50℃， 10%～90%RH | ||||
| Recommended Height for Installation | 3-6m | 3-6m | 6-8m | 6-8m | |
| IP Level | IP 67 | ||||
